Description

This maple neck with rosewood fretboard is made in the EU (Czech Republic). High quality wood and frets and a perfect fit are prerequisites to a stable and perfectly playing guitar.

This neck is unfinished and only needs minimal sanding for finishing. It may need some minor adjustments to match it to the body you selected. The neck profile is an “oval C” shape but of course it’s possible to further shape the neck profile to your liking.

The 9,5″ radius is the perfect middle ground between the vintage feel and good playability, especially for string bending. This radius has become an often chosen radius for many USA-made guitars of this type. For enhanced playability ‘narrow-tall’ 6105 style frets were used.

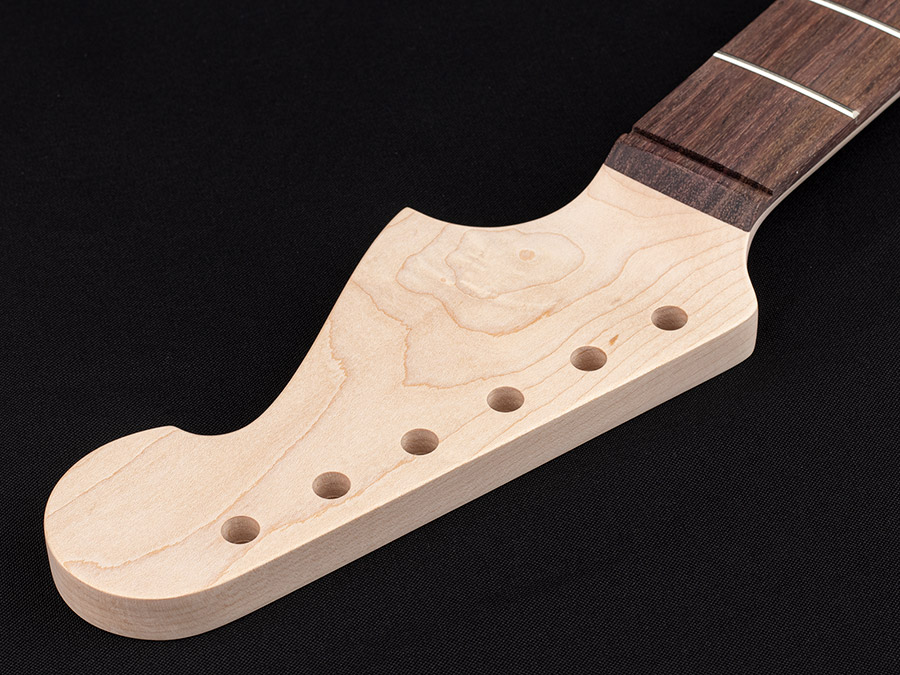

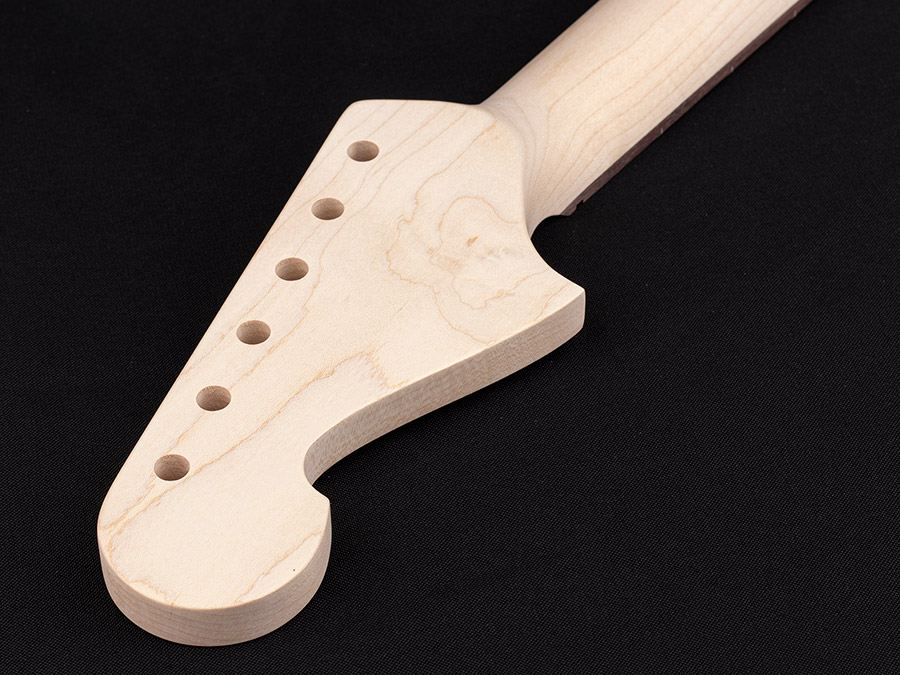

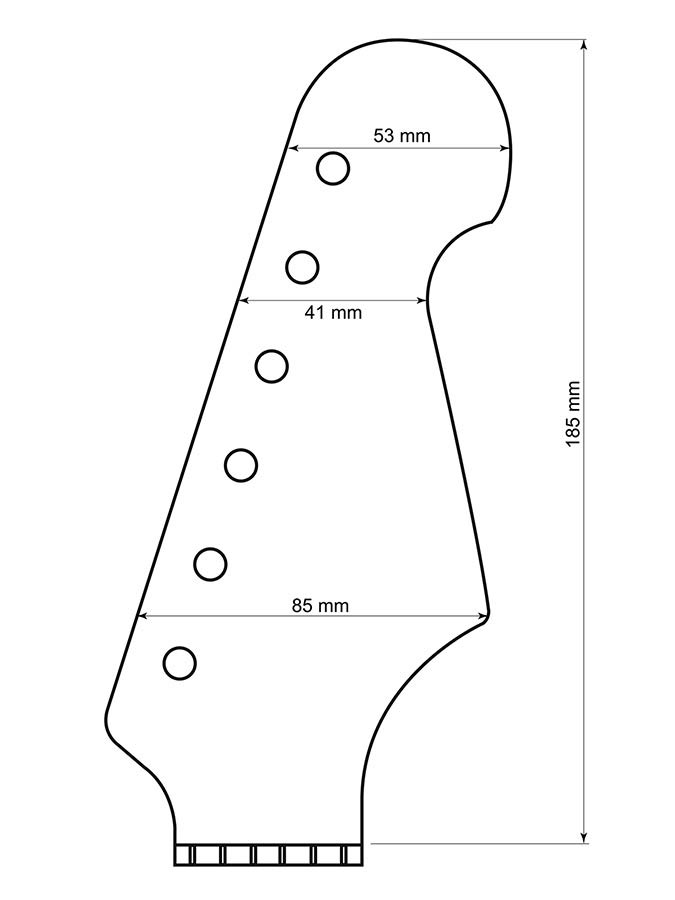

The headstock features a large proprietary design shape. It allows you to use it as is, or easily adjust it to your own headstock design with minimal alterations or sanding/routing. While high quality frets have been installed a minor fret dress may be necessary. Since wood is a natural product there will be wood grain differences between necks of the same specifications.

Specifications:
• maple neck with rosewood slab fretboard for ST
• scale length: 25,5”
• frets: 21, 6105 style

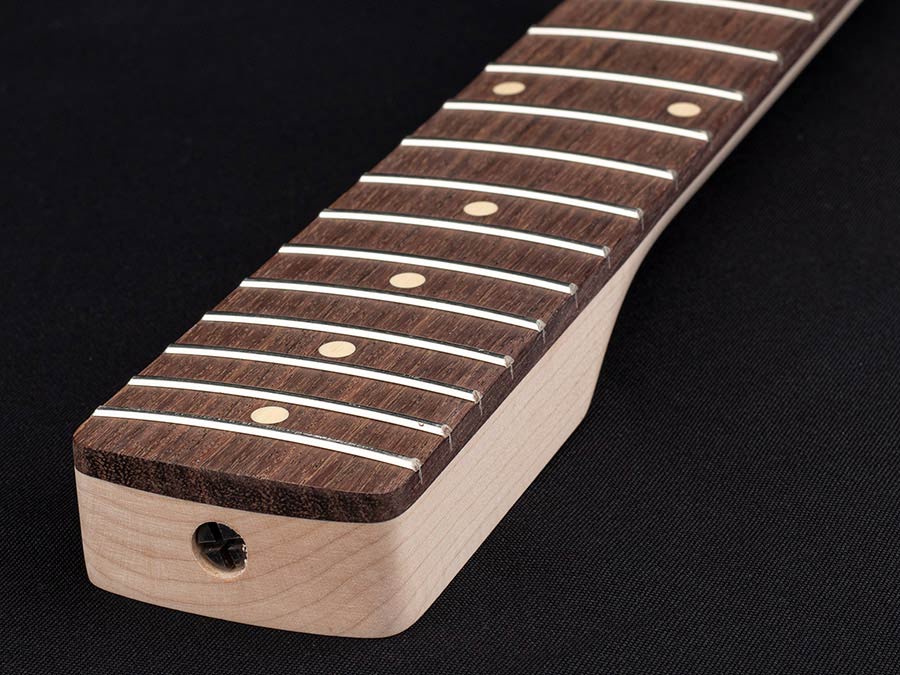

• fingerboard radius: 9,5″
• neck thickness 1st fret: 22,5mm
• neck thickness 12th fret: 24,5mm
• nut slot: 43,0 x 3,0 mm, flat bottom

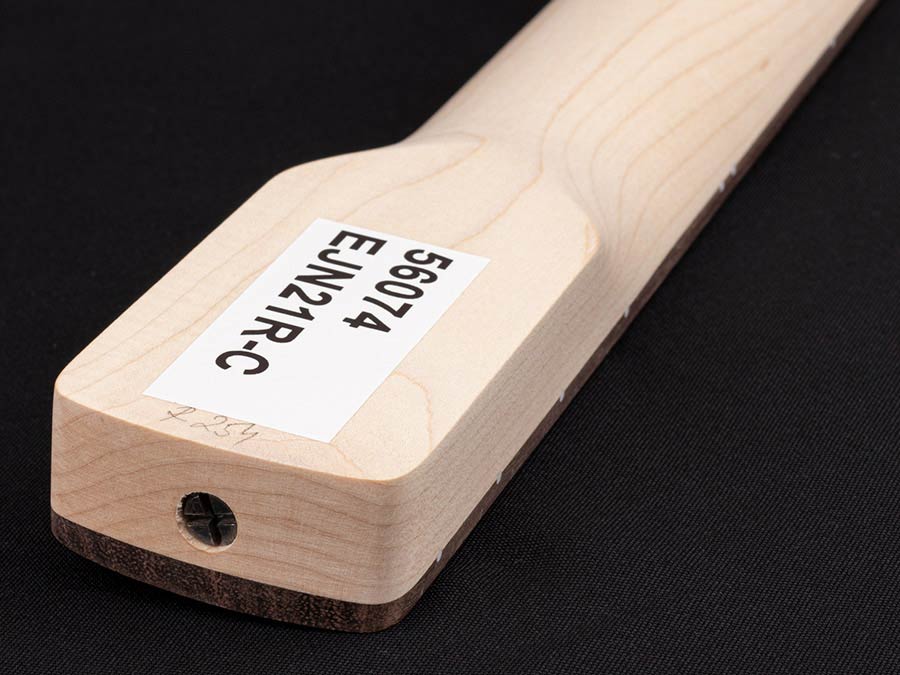

• truss rod style: single action, Phillips nut adjustment at heel
• machine head holes diameter: 8,0mm
• heel: 55,5 mm width, no pre-drilled holes
• unfinished
