Description

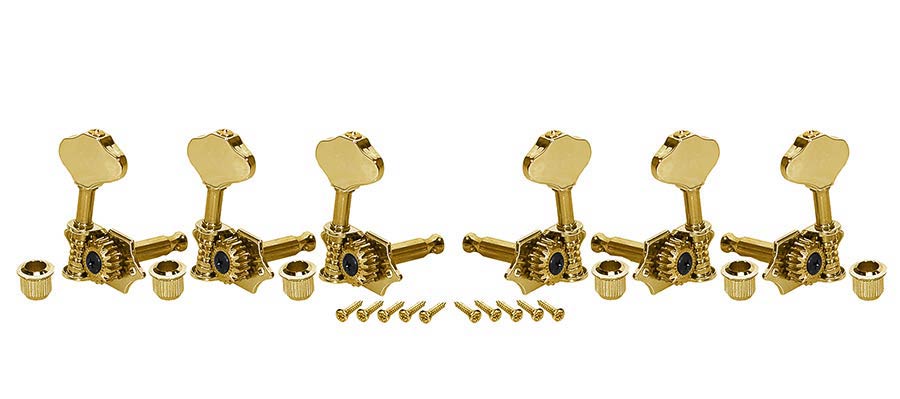

These Wilkinson machine heads are designed for solid headstocks. With the gear ratio of 1:19, finetuning has become very easy. These machine heads are also available for slotted headstocks: WJ-28N-GDS

specifications

butterbean keys
baseplate length: 34mm
baseplate width: 16,5mm
shaft to string hole: 22mm
shaft thickness: 6mm

bushing width: 9mm (8 mm hole required)
bushing length: 9,6mm
bushing overhang headstock: 11mm
finish: gold
